Conductive PVC Film
Conductive PVC Film 1.0 mm — Single-Sided
Review the listed specification, test information and intended application before selecting this product.
Product overview

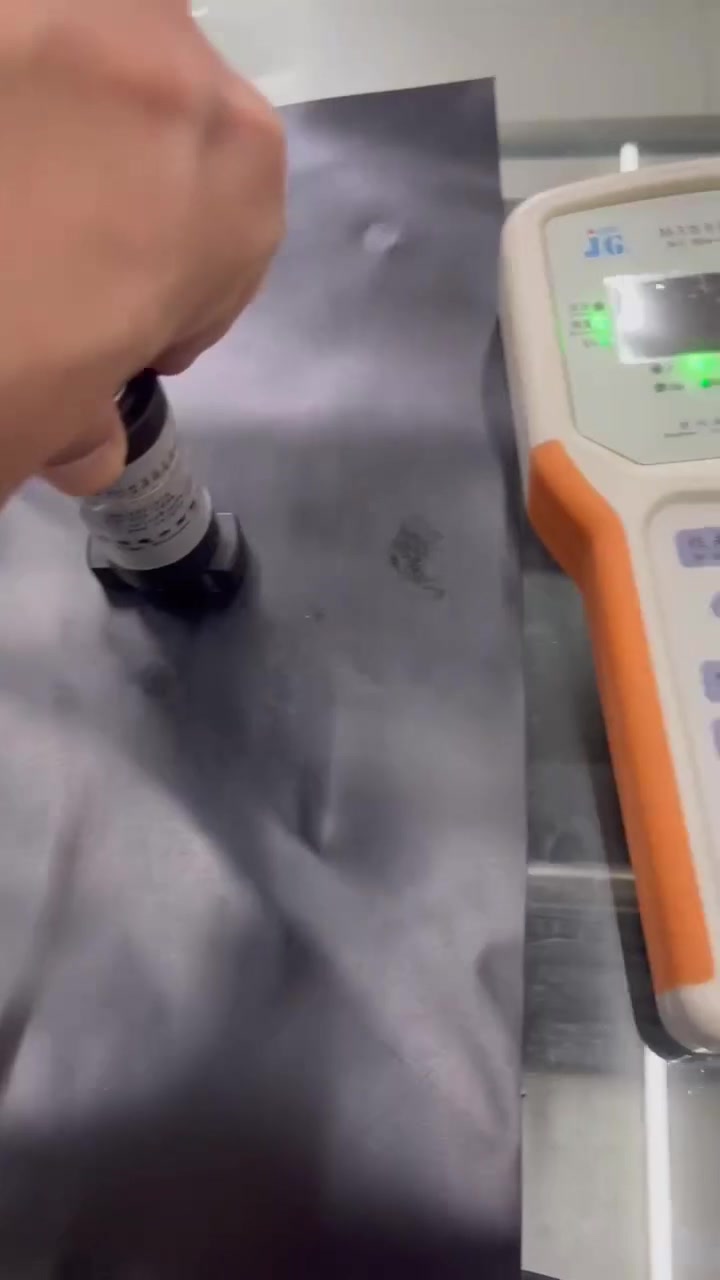

Black single-sided conductive PVC film supplied in a nominal 1.0 mm variant. The supplier workbook reports a surface-resistance value of 120 Ω ±30% using GB/T 1410 as the cited test reference. This product family is presented for the electronic surface-connection and signal-related uses described in the supplied material notes; it is not presented as a substitute for PVC geomembrane or a general-purpose electrical specification. Confirm the required electrode arrangement, applied voltage, conditioning, measurement time, dimensions and acceptance range before purchase.
Key specifications
| Thickness | 1.0 mm |
|---|---|
| Width | Confirm with supplier |
| Length | Confirm with supplier |
| Color | Black |
| Construction | Single-sided conductive PVC film |
| Nominal thickness | 1.0 mm (supplier workbook; ±5%) |
| Colour | Black |
| Roll width and length | Not stated in the supplied conductive-film workbook; confirm at quotation stage |
| Declared application boundary | Electronic-surface connections and signal-related uses stated in the supplier material notes; project qualification required |
| Test documentation | Supplier TDS PDF and four-variant workbook available on this page |
Key features
- Single-sided conductive PVC construction as identified in the supplied workbook
- Supplier-reported surface resistance: 120 Ω ±30%; measurement configuration and conditioning must be specified for acceptance
- Nominal thickness and mechanical values are variant-specific; do not transfer results between variants without review
- Black visual appearance; inspect surface condition and batch traceability before acceptance
- Use only after checking the electrical, thermal, chemical and mechanical envelope of the actual assembly
Typical applications
- Electronic-device surface connections described in the supplier material notes
- Signal-line or waveguide-related assemblies only where the complete system design is qualified
- Prototype and incoming-material evaluation against an agreed test plan
- Not a geomembrane, roofing sheet, food-contact material or medical-use claim
Procurement and export planning
- MOQ: Minimum order quantity is confirmed against the material specification, roll dimensions and total order quantity.
- Lead time: Production lead time is confirmed against the selected specification, order scope and requested delivery schedule.
- Packing and container loading: Roll dimensions, destination port and loading requirements should be confirmed before preparing the commercial offer.
- Documents: Identify technical, quality and commercial documents required for the project review.
Request project support
Share your application, required thickness, roll dimensions, quantity and delivery destination for a technical recommendation and quotation.
